Velab

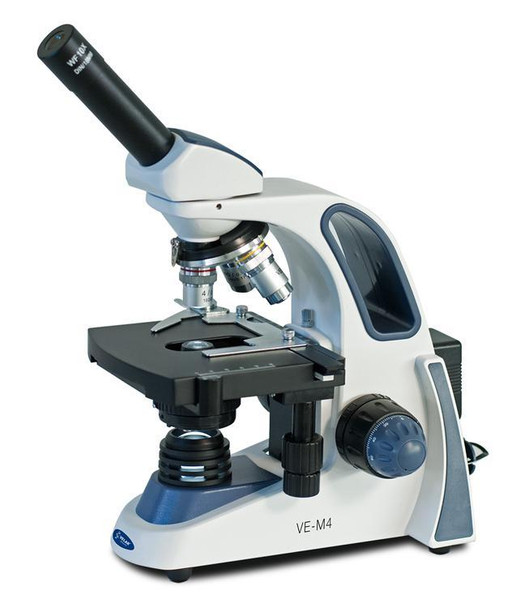

Velab VE-M4 Intermediate Biological Monocular Microscope, Triple Nose Piece, 5.11” x 5.11” 2-Layer Stage
- SKU:
- 7501046800935-1
- MPN:
- VE-M4
- Condition:
- New
- Availability:
- Ships in 5 Business Days
Description
The VE-M4 is the ideal microscope for education and laboratories settings. Its mechanical stage facilitates sample observations and the LED lighting prevents the device from heating up. The VE-M4 includes a rear cable-winding reel for the power adapter. Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, etc.
This microscope uses a WF 10X/18 mm with block screw eyepiece. The monocular head is 45° inclined and 360° rotatable. It has a triple nosepiece with click-stops. The objectives are 4X, 10X and 40X, achromatic optics with color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240, 50/60 Hz.
View AllClose
This microscope uses a WF 10X/18 mm with block screw eyepiece. The monocular head is 45° inclined and 360° rotatable. It has a triple nosepiece with click-stops. The objectives are 4X, 10X and 40X, achromatic optics with color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240, 50/60 Hz.
Additional Information
Product Part Number: |
VE-M4 |
Product Model: |
VE-M4 |
Eyepiece: |
WF 10X/18 mm with block screw |
Head: |
Monocular head, 45° inclined and 360° rotatable |
Objectives: |
4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
Condenser: |
Abbe, N.A. 1.25 with height adjustment screw |
Diaphragm: |
Iris type with filter holder |
