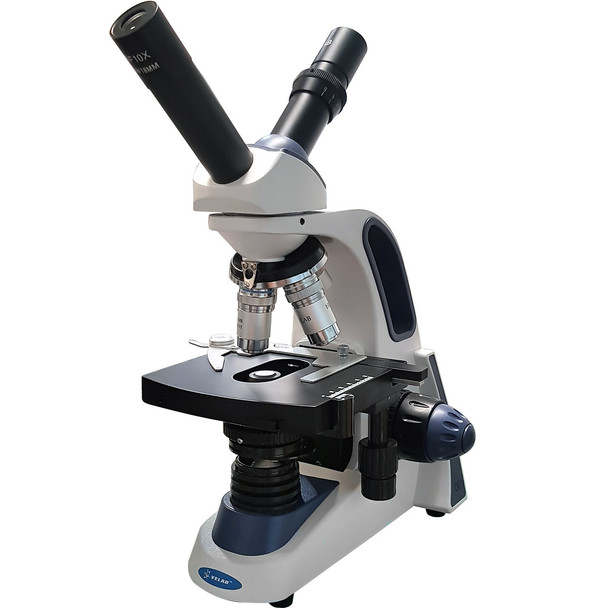

Velab VE-M5DTH Dual View Compound Microscope, Quadruple Nose Piece, 5.11” x 5.11” 2-Layer Stage
Price :
$507.00
$476.39
(You save
$30.61
)
Condition:
New
SKU:
7501046801239-1
Click Thumbnails to Enlarge
(No reviews yet)
Write a Review
| Product Part Number: | VE-M5DTH |
| Product Model: | VE-M5DTH |
| Eyepiece: | WF 10X/18 mm with block screw |
| Head: | Double Monocular head, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95” |
| Objectives: | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification |
| Condenser: | Abbe, N.A. 1.25 with height adjustment screw |
| Diaphragm: | Iris type with filter holder |
The VE-M5DTH dual view compound microscope is ideal for 2 simultaneous observations. Its area of application is not limited to mid and upper level education environments, the VE-M5DTH can also be applied to meet the basic needs in clinical laboratories. It features LED illumination and a quadruple nosepiece (with immersion objective).
This microscope uses a WF 10X/18 mm with block screw eyepiece. The double monocular head is 45° inclined and 360° rotatable with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”. It has a quadruple nosepiece with click-stops. The objectives are 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs with tension adjustment allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240, 50/60 Hz AC adapter.
This microscope uses a WF 10X/18 mm with block screw eyepiece. The double monocular head is 45° inclined and 360° rotatable with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”. It has a quadruple nosepiece with click-stops. The objectives are 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs with tension adjustment allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240, 50/60 Hz AC adapter.
10-Year Manufacturer Warranty.
