Description

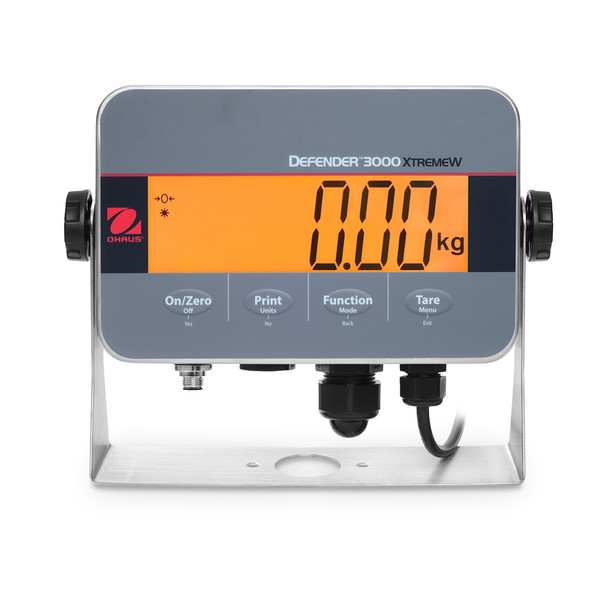

OHAUS Defender 3000 i-DT33XW Weighing Indicator

The i-DT33XW provides weight display and basic weighing functions for a compatible load-cell base or platform. This listing is for the indicator, not a complete scale. Use it for production checks, parts counting, packaging and warehouse weighing systems after appropriate installation and calibration.

Readable results and practical functions

The LCD has large 45 mm digits and multicolor backlighting. Weighing, counting, checkweighing and totalization modes help operators record weights and compare loads with target limits. Maximum displayed resolution is 1:30,000; approved NTEP and Measurement Canada resolution is 1:6,000 Class III, subject to the complete weighing system and its configuration.

Construction and connectivity

The 304 stainless steel housing and bracket provide an IP66 washdown-protected indicator. RS232 is standard, with an optional second USB Device or Ethernet interface. It supports up to six 350-ohm load cells with 5 VDC excitation.

View AllClose

Warranty Information

1 year
View AllClose

Additional Information

Weighing Performance

Calibration
Zero, span or three-point linear
Stabilization Time
1 second

Platform & Construction

Construction
304 stainless steel housing and mounting bracket

Display & Functions

Display
LCD, 45 mm (1.8 in) digits, multicolor backlight
Applications
Weighing, Counting, Checkweighing, Totalization

Power & Connectivity

Power
AC and internal rechargeable battery included
Communication
RS232 standard; optional USB Device or Ethernet
Communication
RS232 standard; USB Device or Ethernet optional

Operating Conditions & Certifications

Operating Temperature
14 to 104°F (-10 to 40°C)
Protection Rating
IP66

Product Identification

Manufacturer Part Number
30678638
Model
DT33XW
Product Series
Defender

Other Specifications

Weighing Units
kg, g, lb, oz, lb:oz, metric tonne
Maximum Displayed Resolution
1:30,000
Maximum Approved Resolution
NTEP / Measurement Canada: 1:6,000, Class III
Load Cell Excitation
5 VDC
Load Cell Drive
Up to six 350-ohm load cells
Load Cell Input Sensitivity
Up to 3 mV/V
Keyboard
Four membrane keys
Auto-zero Tracking
Off, 0.5d, 1d or 3d
