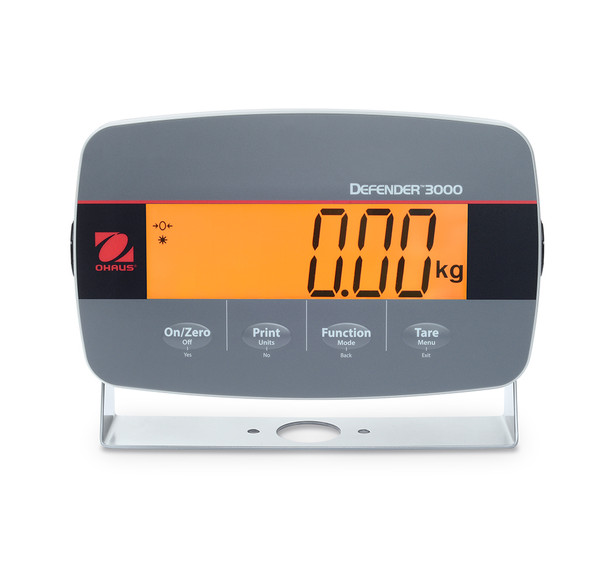

OHAUS Defender 3000 i-DT33P Weighing Indicator
The i-DT33P provides weight display and basic weighing functions for a compatible load-cell base or platform. This listing is for the indicator, not a complete scale. Use it for production checks, parts counting, packaging and warehouse weighing systems after appropriate installation and calibration.
Readable results and practical functions
The LCD has large 45 mm digits and multicolor backlighting. Weighing, counting, checkweighing and totalization modes help operators record weights and compare loads with target limits. Maximum displayed resolution is 1:30,000; approved NTEP and Measurement Canada resolution is 1:6,000 Class III, subject to the complete weighing system and its configuration.
Construction and connectivity
The ABS housing is paired with a powder-coated steel mounting bracket. RS232 is standard, with an optional second USB Device or Ethernet interface. It supports up to six 350-ohm load cells with 5 VDC excitation.
Additional Information
Weighing Performance
| Calibration | Zero, span or three-point linear |
|---|---|
| Stabilization Time | 1 second |
Platform & Construction
| Construction | ABS housing; powder-coated steel mounting bracket |
|---|
Display & Functions
| Display | LCD, 45 mm (1.8 in) digits, multicolor backlight |
|---|---|
| Applications | Weighing, Counting, Checkweighing, Totalization |
Power & Connectivity
| Power | AC included; six C batteries or optional rechargeable battery not included |
|---|---|
| Communication | RS232 standard; optional USB Device or Ethernet |
| Communication | RS232 standard; USB Device or Ethernet optional |
Operating Conditions & Certifications
| Protection Rating | Not specified |
|---|
Product Identification
| Manufacturer Part Number | 30648433 |
|---|---|
| Model | DT33P |
| Product Series | Defender |
Other Specifications
| Weighing Units | kg, g, lb, oz, lb:oz, metric tonne |
|---|---|
| Maximum Displayed Resolution | 1:30,000 |
| Maximum Approved Resolution | NTEP / Measurement Canada: 1:6,000, Class III |
| Load Cell Excitation | 5 VDC |
| Load Cell Drive | Up to six 350-ohm load cells |
| Load Cell Input Sensitivity | Up to 3 mV/V |
| Keyboard | Four membrane keys |
| Auto-zero Tracking | Off, 0.5d, 1d or 3d |
