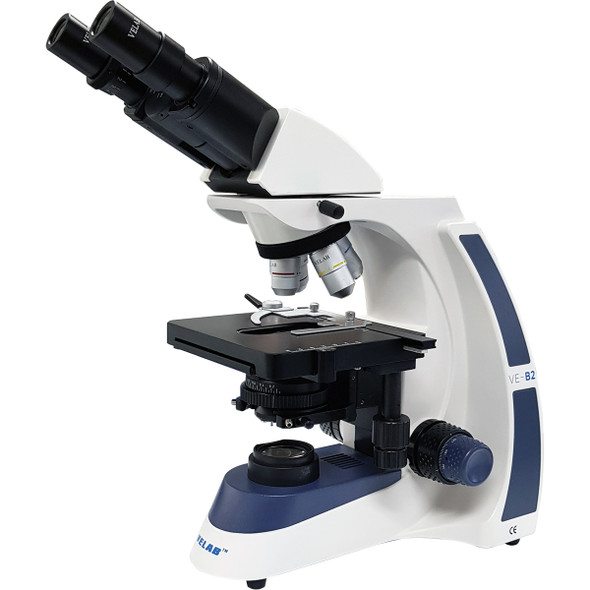

Velab VE-B20 Binocular Microscope with Double Head, Advanced Optics, LED Lighting and Quadruple Nose Piece
Price :
$1,509.00
$1,387.47
(You save
$121.53
)
Condition:
New
SKU:
7501046800140-1
Click Thumbnails to Enlarge
(No reviews yet)
Write a Review
| Product Part Number: | VE-B20 |
| Product Model: | VE-B20 |
| Eyepiece: | WF 10X/22mm with rubber eyecups and diopter adjustment on both eyepiece |
| Head: | Double binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 – 75 mm / 1.88” - 2.95” |
| Objectives: | 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected achromatic optics, metallic finish and color ring for easy identification |
| Condenser: | Abbe, 1.25, N.A. with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included) |
| Diaphragm: | Iris type with filter holder |
The VE-B20 is ideal for higher education and advanced research. It allows two users to view the sample at the same time. Suitable for routine techniques in clinical laboratories such as cellular differential count in Neubauer’s chamber, coproparasitoscopic examinations, urinary sediment observation and bacteriology samples. The VE-B20 also offers the optional configuration to be compatible with a phase contrast kit and polarization set.
This microscope uses a WF 10X/22mm with rubber eyecups and diopter adjustment on both eyepiece. The double binocular Siedentopf type head is 45° inclined with 360° rotation, with interpupillary distance adjustment between 48 – 75 mm / 1.88” - 2.95”. It has a quadruple nosepiece with anti-slip grip and click-stops. The objectives are 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected achromatic optics, metallic finish and color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 7.08” x 5.90”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs with tension adjustment allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
This microscope uses a WF 10X/22mm with rubber eyecups and diopter adjustment on both eyepiece. The double binocular Siedentopf type head is 45° inclined with 360° rotation, with interpupillary distance adjustment between 48 – 75 mm / 1.88” - 2.95”. It has a quadruple nosepiece with anti-slip grip and click-stops. The objectives are 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected achromatic optics, metallic finish and color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 7.08” x 5.90”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs with tension adjustment allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
10-Year Manufacturer Warranty.
