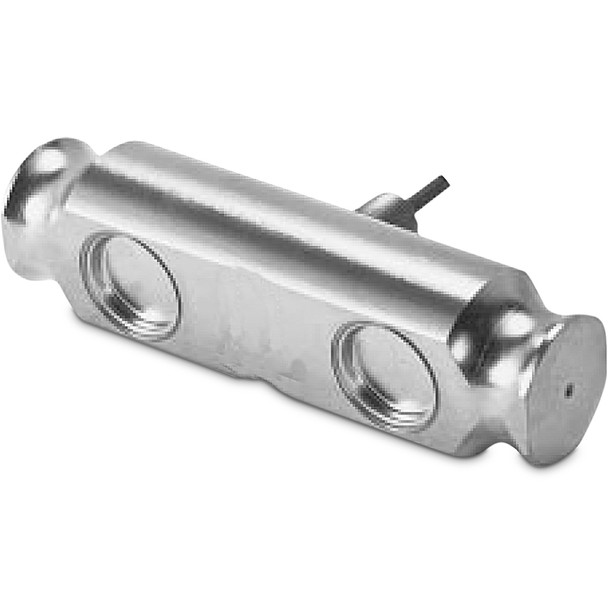

Rice Lake 91765, Double Ended Beam Load Cell, 50K lb Cap, Stainless Steel, NTEP
(No reviews yet)
Write a Review
- SKU:
- 91765-1
- UPC:
- 745809827242
- MPN:
- 91765
- Condition:
- New
- Availability:
- Ships in 2 Business Days
Description
The RLD50000S is a stainless steel, welded-seal load cell designed as an interchangeable load cell for the Cardinal® DB50000S. It is NTEP Certified for 10,000 divisions and has 35 ft of cable standard. Rated excitation: 5-10 VDC (15 V DC Maximum). Non-repeatability: 0.01% full scale. Combined error: 0.03% full scale. Insulation resistance: 5,000 megohms. Deflection at capacity: 50,000 lb equals 0.01 in. Cable diameter: 0.305 polyurethane jacket. Cable color code: (red) positive excitation, (black) negative excitation, (green) positive signal, (white) negative signal.
View AllClose
Additional Information
Full Scale Output: |
2 ± 0.1% mV/V |
Resistance: |
(Output) 699-707Ω (Input) 686-714Ω |
Seal Type: |
Welded Seal, IP67 |
Cable Length: |
35 ft |
Safe Overload/Sideload: |
(Overload) 150% full scale (Sideload) 100% full scale |
Product Part Number: |
91765 |
Product Model: |
RLDB50000S |
Related Products
Related Products
Rice Lake 21620, Alloy Steel Double Ended Beam, 125,000 lb Load Cell, NTEP
Rice Lake
MSRP:
$1,669.00
$1,666.00
Interchangeable products for the load cells are: VPG Sensortronics 65040A, VPG Celtron DLB, Artech 80310, Thurman TSC 840, Sentran WD1, Anyload 102TH. Double-ended beam load cell. Nickel plated and...
Rice Lake 21617, Alloy Steel Double Ended Beam, 60,000 lb Load Cell, NTEP
Rice Lake
MSRP:
$885.00
$882.00
Interchangeable products for the load cells are: VPG Sensortronics 65040A, VPG Celtron DLB, Artech 80310, Thurman TSC 840, Sentran WD1, Anyload 102TH. Double-ended beam load cell. Nickel plated and...
Rice Lake 21621, Double Ended Beam Alloy Steel, 50,000 lb Load Cell, NTEP
Rice Lake
MSRP:
$917.00
$914.00
Interchangeable products for the load cells are: VPG Sensortronics 65040A, VPG Celtron DLB, Artech 80310, Thurman TSC 840, Sentran WD1, Anyload 102TH. Double-ended beam load cell. Nickel plated and...

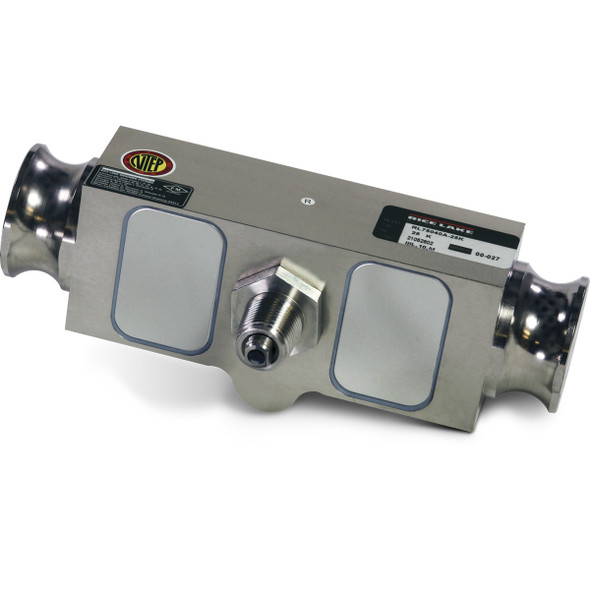

Rice Lake 21614, Alloy Steel Double Ended Beam, 25,000 lb Load Cell, NTEP
