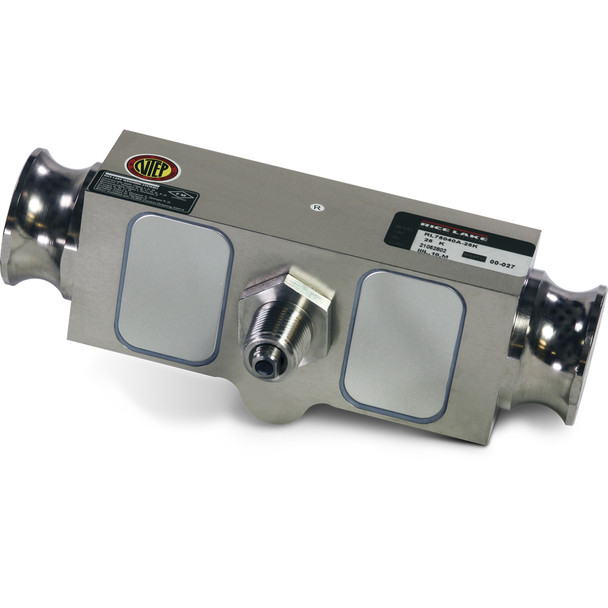

Rice Lake 21618, Alloy Steel Double Ended Beam, 75,000 lb Load Cell, NTEP

Price :
$885.00
$882.00
(You save $3.00 )
Condition:
New
SKU:
21618-1
Shipping Info:
Ships in 2 Business Days
Availability:
In Stock
Rice Lake 21618, Alloy Steel Double Ended Beam, 75,000 lb Load Cell, NTEP

Click Thumbnails to Enlarge

(No reviews yet) Write a Review
Full Scale Output: 3.0 mV/V
Material: High Alloy Steel, Nickel Plated
Seal Type: Environmentally Sealed, IP71
Cable Length: 35 ft Cable
Safe Overload/Sideload: (Overload) 150% full scale (Sideload) 100% full scale
Product Part Number: 21618
Product Model: RL75040-75K
Interchangeable products for the load cells are: VPG Sensortronics 65040A, VPG Celtron DLB, Artech 80310, Thurman TSC 840, Sentran WD1, Anyload 102TH. Double-ended beam load cell. Nickel plated and environmentally sealed with stainless steel plates. Designed for center mounting and double link loading, compatible with Unilink/Translink suspension up to 75,000 lb (34,019.4 kg). Capacities range from 25,000 lb to 125,000 lb (11,339.8 kg to 56,699.1 kg). Resistance: (Output) 700 (± 10) ohm (Input) 770 (± 10) ohm. *Small envelope load cells have an input resistance of 700 (± 14) ohms.* Rated excitation: 5-10 VDC (15 V maximum). Nonlinearity: 0.003% full scale. Hysteresis: 0.02% full scale. Insulation resistance: 1,000 megohms. Cable color code: (red) positive excitation, (black) negative excitation, (green) positive signal, (white) negative signal.
2-Year Manufacturer Warranty.
