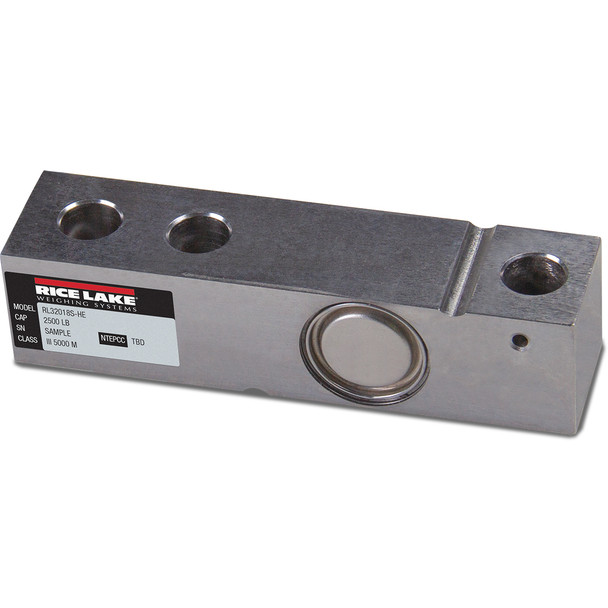

Rice Lake 189182, 5K lb Cap, Hermetically Sealed Stainless Steel Load Cell, NTEP
Price :
$477.00
$474.00
(You save
$3.00
)
Condition:
New
SKU:
189182-1
Click Thumbnails to Enlarge
(No reviews yet)
Write a Review
| Full Scale Output: | 3.0 mV/V ±0.05% current matched |
| Resistance: | (Output) 350 (± 3) ohm (Input) 400 (± 20) ohm |
| Seal Type: | Hermetically Sealed, IP69K |
| Cable Length: | 20 ft PTFE |
| Safe Overload/Sideload: | (Overload) 150% Full Scale (Sideload) 100% Full Scale |
| Product Part Number: | 189182 |
| Product Model: | RL32018S-HE-5K |
Interchangeable products for the load cells are: Rice Lake RL35083 (non-NTEP), VPG Sensortronics 65083, and VPG Sensortronics SQB-HSS. The Rice Lake RL32018S-HE is a hermetically sealed, stainless steel single-ended beam load cell with 20 feet of PTFE jacketed cable for protection in harsh environments. Sealed to IP69K standards this cell is 3 mV/V and NTEP approved from1,000 lb to 10,000 lb. Rated excitation: 5-10 VDC (15 V Maximum). Combined error: 0.017% full scale. Insulation resistance: >5,000 megohms. Cable color code: (red) positive excitation (black) negative excitation (green) positive signal (white) negative signal.
2-Year Manufacturer Warranty.
