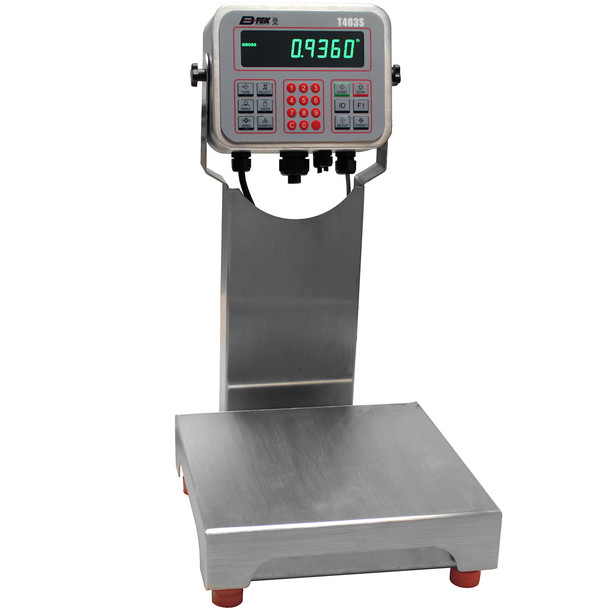

B-Tek 912-5690 AquaShield Max Washdown Bench Scale w/ T403S, 200 lb x 0.05 lb, 18 in x 18 in Stainless Steel IP69K, NTEP
- SKU:
- BTK-912-5690-1
- UPC:
- 745809834752
- MPN:
- 912-5690
- Availability:
- Ships in 5 Business Days
Frequently bought together:
Description
The AquaShield Bench Scale has been designed with washdown in mind. It makes a great addition to food industry applications or where sanitization is a must. With a ridged frame and hardware made of 304 SAE stainless along with an IP69K hermetically sealed load cell, FDA compliant feet and quick drain design the AquaShield is resistant to water and rust allowing it to be washed down as needed. The washdown bench scale has been built for food, chemical and industrial environments. This series utilizes an Aqueduct Drainage System (ADS) to provide an unimpeded path for water evacuation and prevent accumulation of liquid and/or material build-up. ADS includes specialized drainage holes on all sides of the load cell and formed channel that prevents water accumulation in the corners of the scale. This model includes a 19" tall 304 stainless steel column and T403 indicator. This indicator has a backlit 7-digit LCD display with 0.8” digits. The T403 features 24 operational keys, including Zero, Print, Units, Tare, Select, F1, Sample, Target, ID, Start, Stop, Full Numeric Keypad, Clear, and Setup. This series is both NTEP certified and Approved for Canada.
View AllClose
Warranty Information
2-Year on weighbridge steel structure | 1-Year on IP rated load cell
View AllClose
Additional Information
Product Part Number: |
912-5690 |
Product Model: |
NB-BS-1818-200-T403-HS |
Construction: |
304 stainless steel heavy-duty formed base frame and spider; heavy-gauge 304 stainless steel platter; FDA-compliant feet |
Platform Size: |
18 in x 18 in |
Display: |
7-digit high-contrast green-on-black LCD, 0.8 in digits |
Capacity: |
200 lb |
Readability: |
0.05 lb |
Protection Rating: |
IP69K |
Legal for Trade: |
NTEP Certified; Measurement Canada Approved (scale base) |
Load Cell: |
Stainless steel hermetic IP69K single-point load cell, 10 ft cable, FM Approved |
Indicator: |
T403S indicator with 19 in stainless open-frame column |
Applications: |
General weighing, accumulation, checkweighing, counting, peak measurement, batching, remote display |
Units of Measure: |
lb, kg, oz, g, lb:oz, custom |
Communication: |
2 x RS-232; Ethernet (TCP/IP, EtherNet/IP, Modbus/TCP); USB host |
Warranty: |
Scale: 2-year weighbridge steel structure; 1-year IP-rated load cell. Indicator: 1 year. |
Dimensions: |
18 in L x 22 in W x 20.5 in H |
