A&D Weighing

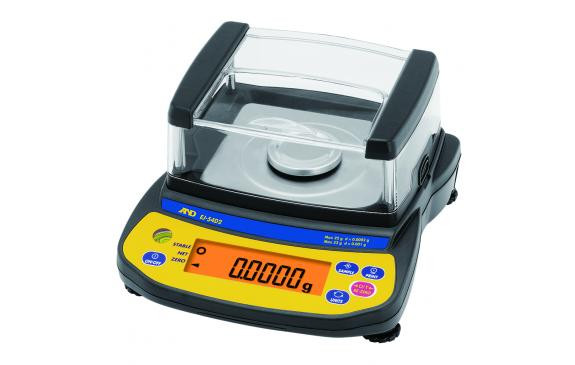

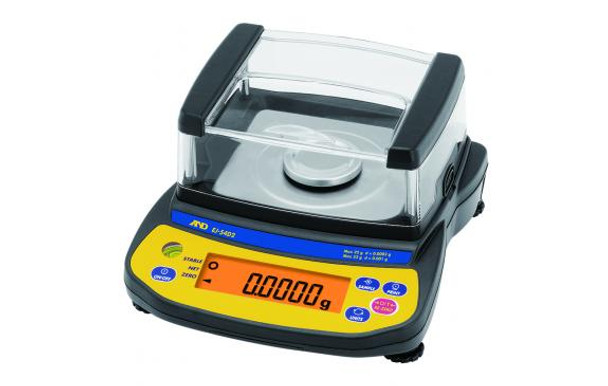

A&D Newton EJ-54D2 Dual Range Analytical Balance, 22/52 g x 0.0002 g/0.001 g
- SKU:
- AND-EJ-54D2-1
- MPN:
- EJ-54D2
- Condition:
- New
- Availability:
- Ships in 3 Business Days
Description
Newton EJ-54D2 Portable Balance – 22/52 g Capacity, 0.0002/0.001 g Readability
Precision Weighing in a Compact, Portable Design
The Newton EJ-54D2 Portable Balance delivers high-precision weighing in a lightweight, space-saving form factor. With dual-range capacity of 22/52 g and readability of 0.0002/0.001 g, it’s ideal for laboratories, fieldwork, and multi-user environments. Designed with SG weighing technology, this balance offers the right functionality at the right price, helping users maintain accuracy in any setting.
Equipped with an external calibration system, stainless steel weigh pan, and ABS plastic housing, the EJ-54D2 includes helpful features like display hold, battery life indicators, and smart stability detection. Optional connectivity options—LAN (Ethernet), USB, and RS-232C—make it easy to integrate with data systems, while its portable design allows for easy storage and relocation.
Key Features of the Newton EJ-54D2
- Dual Capacity: 22 g / 52 g with ultra-fine readability of 0.0002 g / 0.001 g.
- Portable and Lightweight: Ideal for labs, fieldwork, and mobile applications.
- Long Battery Life: Maximizes productivity with extended operating time.
- Simple Operation: Quick-access 5-button interface for essential functions.
- Display Hold Feature: Locks results on screen to reduce recording errors.
- External Calibration: Ensures reliable accuracy in every measurement.
- Smart Counting: ACAI improves precision during parts counting tasks.
- Optional Connectivity: Supports RS-232C, USB, and Ethernet interfaces.
- Durable Construction: Stainless steel pan, ABS housing, and security slot.
- Specialty Use: Supports underhook weighing and density determination kits.
Specifications
- Model: EJ-54D2
- Maximum Capacity: 22 g / 52 g
- Readability: 0.0002 g / 0.001 g
- Repeatability: 0.0004 g / 0.001 g
- Linearity: ±0.0006 g / 0.001 g
- Calibration: External
- Pan Size: Ø50 mm
- External Dimensions: 190 mm x 209 mm x 114 mm
- Display: 16 mm character backlit LCD
- Power: AC Adapter or Battery (both options available)
- Housing: ABS Plastic with Stainless Steel Weigh Pan
- Connectivity: Optional RS-232C, USB, Ethernet (WinCT-Plus software)
- Special Features: Stability indicator, ACAI, Display Hold, M+ Function, Gravity correction
Additional Information
Units: |
g, oz, lb, ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), N (Newton), pcs (counting mode), % (percent mode), SG (density mode) |
Display: |
7-segment LCD with backlight (character height: 16 mm) |
Pan Size: |
Ø50 mm |
Power: |
AC adapter or 4 AA batteries (Not Included) |
Construction: |
Stainless Steel Pan, ABS Plastic Housing |
Product Part Number: |
EJ-54D2 |
Product Model: |
EJ-54D2 |
Product Line: |
EJ Series |
