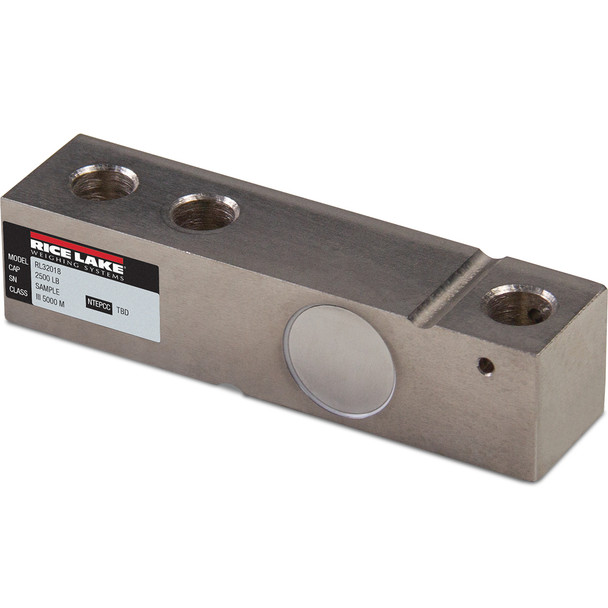

Rice Lake 189153, 2000lb Cap, Alloy Steel Environmentally Sealed Load Cell, NTEP
Price :
$312.00
$266.39
(You save
$45.61
)
Condition:
New
SKU:
189153-1
Click Thumbnails to Enlarge
(No reviews yet)
Write a Review
| Full Scale Output: | 3.0mV/V |
| Resistance: | (Output) 350 (±3) ohm (Input) 400 (±20) ohm |
| Seal Type: | Environmentally Sealed, IP70 |
| Cable Length: | 20 ft |
| Safe Overload/Sideload: | (Overload) 150% full scale (Sideload) 100% full scale |
| Product Part Number: | 189153 |
| Product Model: | RL32018-2K |
The load cell is interchangeable with Rice Lake RL35023, VPG Sensortronics 65023A, and VPG Celtron SQB load cells. Cable color code is as follows; red is positive excitation, black is negative excitation, green is positive signal, and white is negative signal. Each load cell has 20 feet of cable and is FM approved and NTEP approved Class III, 1:5,000 from 1,000 lb to 10,000 lb. Output Resistance: 350 (± 3) ohm. Output Resistance: 350 (± 3) ohm. Temperature: Compensated range: -14° F to 104° F/-10° C to 40° C, Operating range: 0° F to 150° F/-18° C to 65° C. Rated Excitation: 10 VDC (15 V maximum). Combined Error: 0.017% full scale.
2-Year Manufacturer Warranty.
